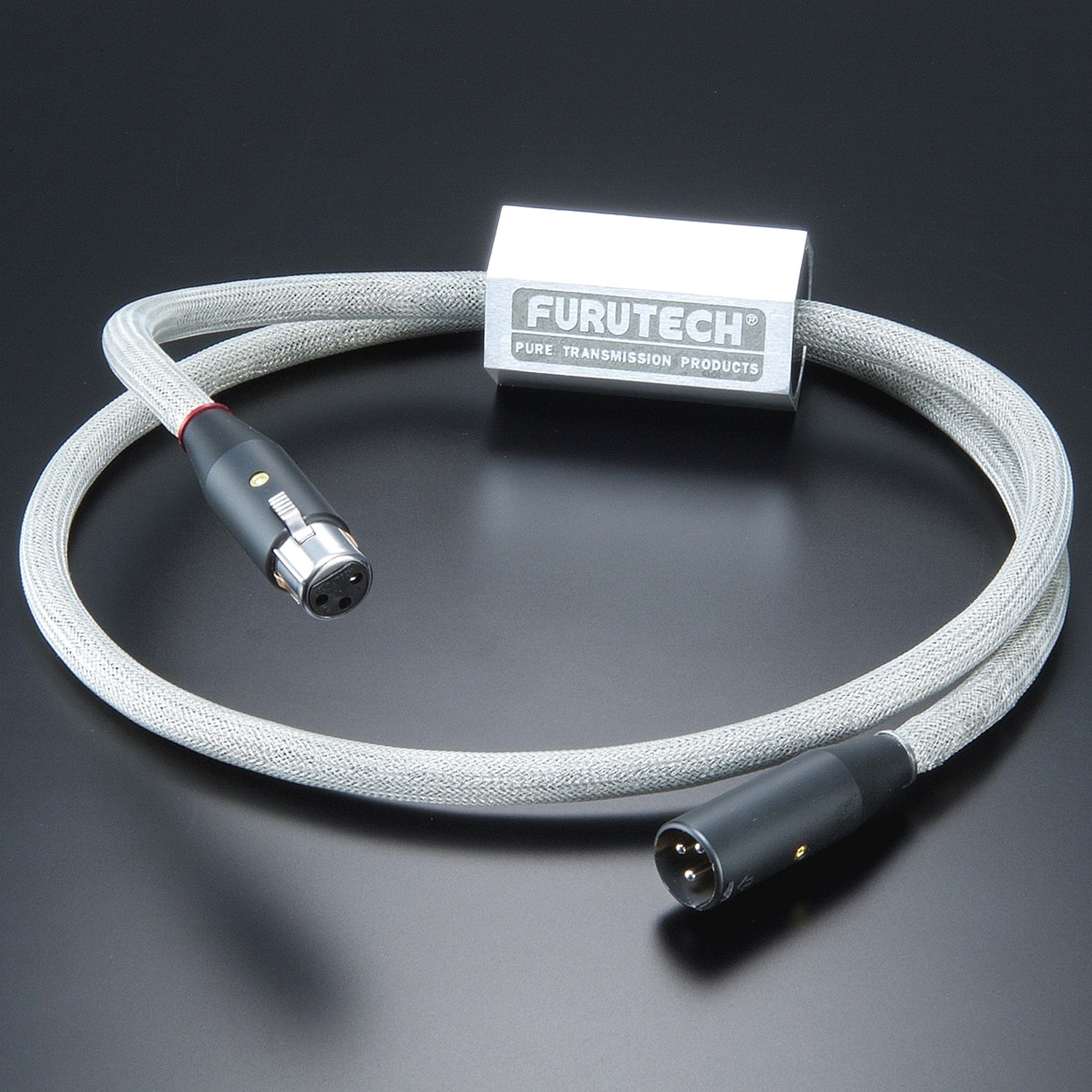

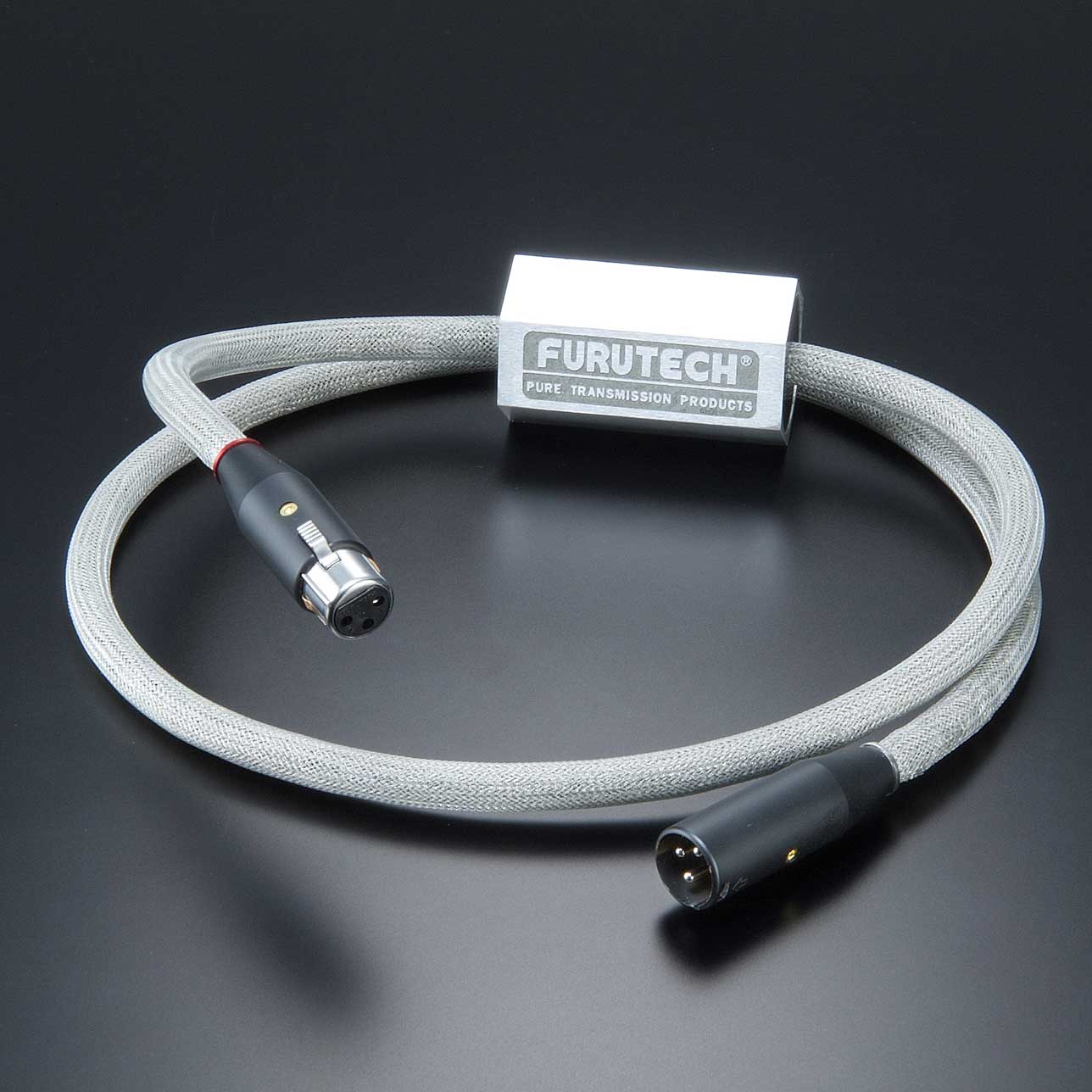

Digital Reference III – Top of the line double-shielded α (Alpha)-OCC conductor interconnects, power cords and digital cables featuring extraordinary build quality and Formula GC-303 antimagnetic EMI-absorbent modules surrounding the cable offering greater resolution, more powerful dynamics, and virtuoso performances from all your components. All connectors are rhodium-plated for optimal signal transfer.

” Furutech might rightly be thought of as WBT’s elder Japanese brother. Elder and bigger … Shielding from and against noise pollution in cables has become more important than ever -　and Furutech has developed a very powerful yet elegant antidote … Bravo.”
— Srajan Ebaen, 6moons.com

“The Furutech cable sound is easily described as one that completely avoids those peculiar striations that result from highlighting, the providence of certain silver cables that emphasize edge definition for nearly surreal image lock. Such sharp edging then becomes synonymous with etching. It gives a short-lived appearance of exceptional detail – short-lived since such sound is not only unrealistic but fatiguing.

“The Furutech cables patently don’t cause this. However, they are exceptionally detailed.
I can’t help but think that the hexagonal barrel innards [Formula GC-303 Modules] are at least somewhat responsible for this wealth of clearly intelligible inner detail. Rather than throwing detail at you, they throw out inter-note noise. While the end result might seem the same — more detail — the way it communicates is very different. Put plainly, the Furutechs never fatigue even at elevated levels yet they do remain ultra resolved.”
— Srajan Ebaen, 6moons.com

Specification:

Construction and Materials
– 30-strand α (Alpha)-OCC Conductor ・ 0.18mm , 1.14mm diameter
– Insulation: 30％ air-foamed HDPE (Red/White) 2.60mm diameter
– Cable Lay: Two twisted cores with cotton yarn
– Cable Wrap: Non-woven fabric wrap approx. 5.8mm diameter
– Shield-1: 0.12mm braided α (Alpha) Conductor braid density: 80％ UP x 6.3mm diameter
– Sheath: Two layers flexible PVC (Dark Brown) 8.0mm diameter
– Shield-2: Special fiberglass and copper wire stranded braid
– Jacket: Nylon yarn braid approx. 10.5mm diameter.
– Shield-3: Special EMI and noise-absorbent Formula GC-303 module
– Connectors: Male [FP-601 M (R)] and female [FP-602 F (R)]
– All metal parts are treated with the
*FURUTECH α(Alpha) Process (Super Cryogenic & Demagnetizing Treatment)

Electrical Properties of Cable Test Method
– Max. Conductor Resistance: 26.4 Ω／km JISC3005 6 20℃
– Min. Insulation Resistance: 1000 MΩ‧km JISC3005 9.1 20℃
– Dielectric Strength: AC. 1000 V／1 min JISC3005 8
– Electrostatic Capacitance: Approx 42 PF／m at 1 KHz
– Characteristic Impedance: 120 Ω at 100 KHz

Cable Length: 1.2M
