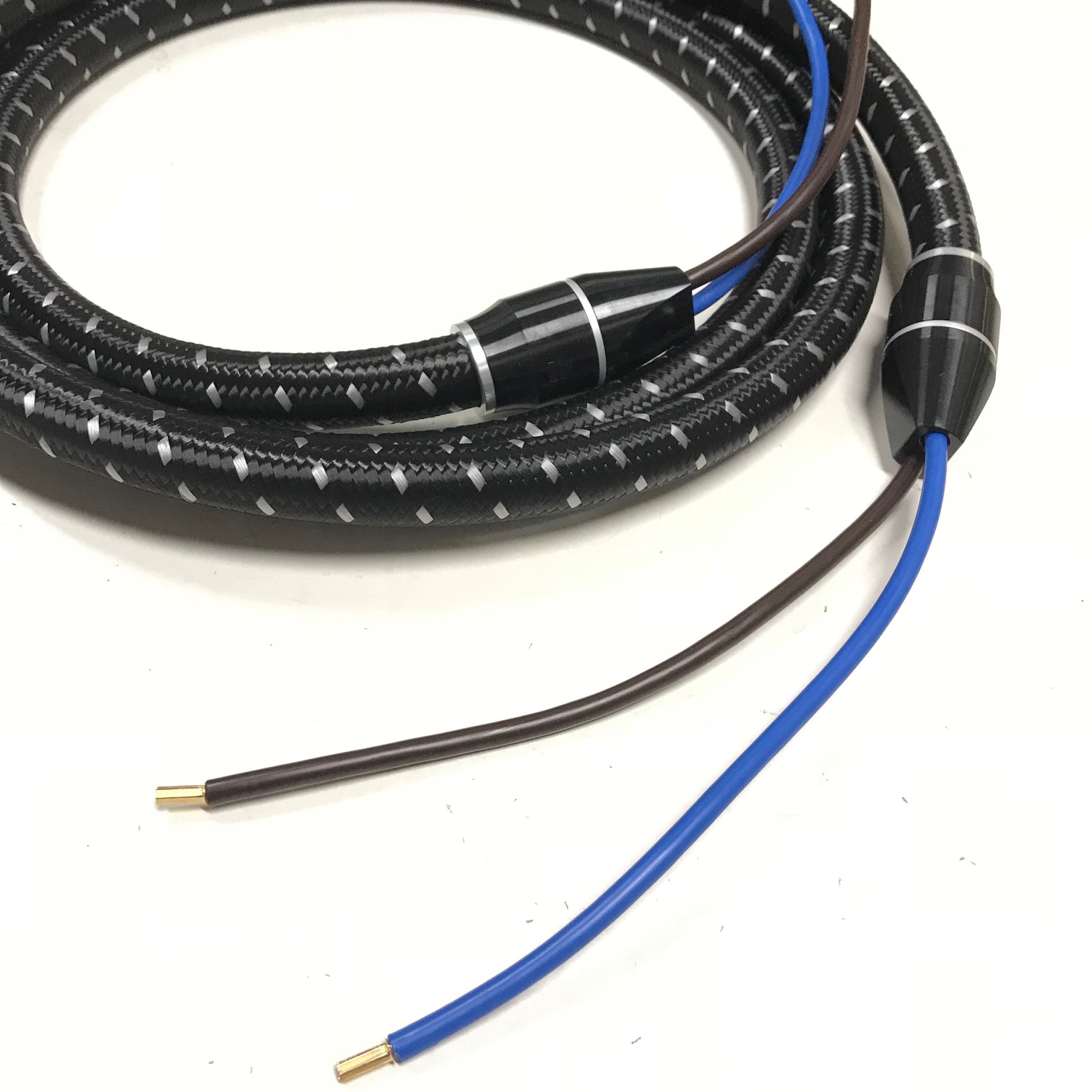

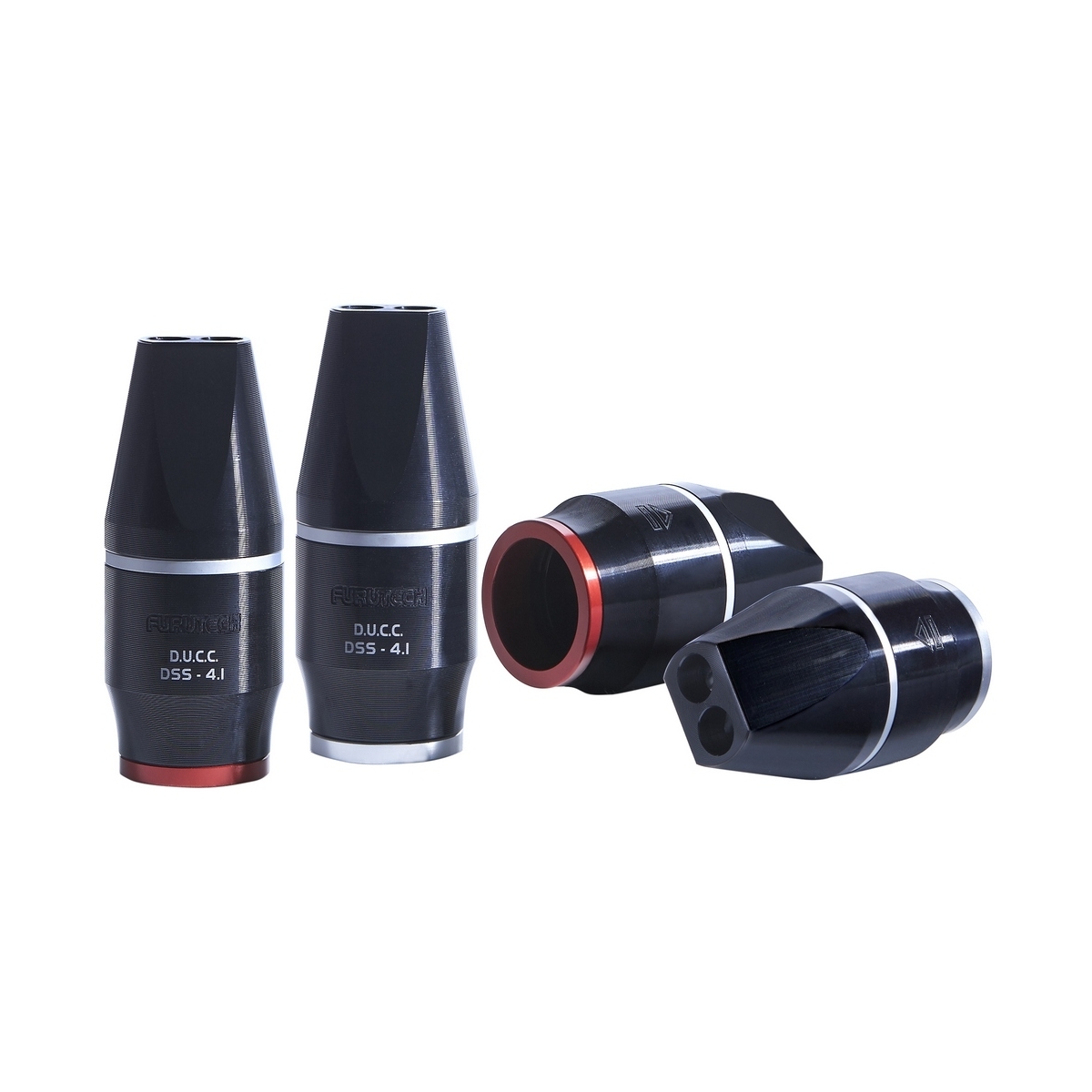

DSS-4.1 Top-Tier Performance Speaker Cable w/Cable Splitter Set

Alpha OCC-DUCC Speaker Bulk Cable DSS-4.1

Furutech’s α (Alpha) OCC‐DUCC is one of a select few of conductors that Furutech engineers have found to excel in sound reproduction. α (Alpha) OCC –DUCC is constructed using a combination of DUCC Ultra Crystallized High Purity Copper and Furutech’s world famous Pure Transmission α (Alpha)-OCC.

Furutech DUCC Ultra Crystallized High Purity Copper — supplied and regulated with strict quality control by Mitsubishi Materials Industries — is one of the best conductors Furutech engineers have found for signal transmission. (MMI is the leading manufacturer of the highest-purity oxygen-free copper in the world) Mitsubishi process this extremely pure oxygen-free copper with new technology that optimally aligns the crystals while reducing the number of crystal-grain boundaries resulting in a tremendously efficient conductor. Straight OCC’s benefits are its larger “fibrous” crystals in which one dimension is longer than the other two so as to create as few crystal junctions as possible. Thus, OCC’s sensitivity to directionality; one path exhibits the least resistance. Furutech’s world famous Pure Transmission α-OCC is the result of further processing with the Alpha Super Cryogenic and Demagnetizing treatment. However, DUCC purity goes a significant step further. Mitsubishi Materials designed the new conductor to optimally align the copper crystal grain structure in addition to reducing crystal grain boundaries. As a result, DUCC is less sensitive to directionality than OCC.

Specification:
– Conductor: Alpha-OCC + α-DUCC (7N Class) 11 AWG

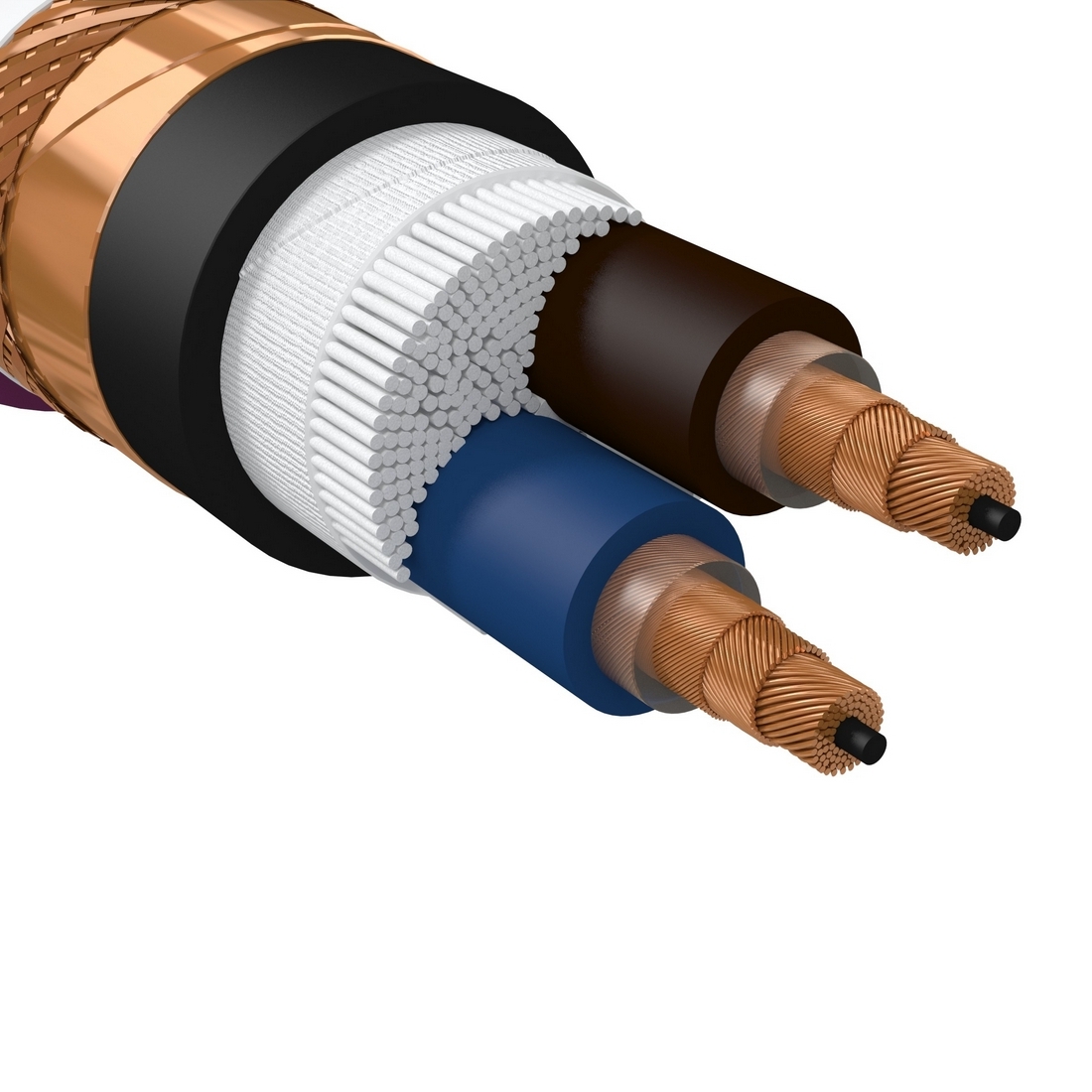

– Construction:（pcs／mm):
Center – 1/0.8 PE Core
Inner – 89/0.18 α-OCC (Right rotate)
Middle – 39/0.18 α-OCC (Left rotate)
Outer – 62/0.13 α-DUCC (Right rotate)
– Twisting Method : 2 Cores Twisted Together
– Barrier Layer 1: Non-Woven Fabric wrap
– Inner Sheath Material: Audio grade flexible PVC (Black) with Nano-Ceramic / Carbon Particle Compound
– Shield: Cu-Foil + Braided OFC
– Barrier Layer 2: Paper wrap
– Outer Sheath Material: Audio Grade Flexible PVC (Dark Purple)
– Outer Sleeve Material: Nylon yarn stranded braid(Black/Silver)

– Overall Diameter Approx.: 19.0mm

Electrical Rating:
– Max. Conductor Resistance: 4.5Ω／km (JISC3005 6 20℃)
– Capacitance: 51.69 PF/M at 1KHz
– Inductance: 0.7 μH/M at 1KHz
– Min. Insulation Resistance: >2500 MΩ.km (JISC3005 9.1 20℃)
– Dielectric Strength:  3000 V／1 min. AC (JISC3005 8)

***NOTE*** : Match with CF-201 NCF and/or CF-202 NCF Series Connectors for best performance
