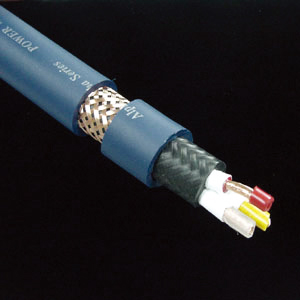

FP-3TS20 Power Cable

FURUTECH α (Alpha) Process
(Two-Stage Cryogenic and Demagnetization)

Using cutting-edge technology and materials, Furutech developed a low-temperature two-stage process that significantly improves every facet of audio and video performance. The treatment begins during the manufacturing
process with a deep, conditioning cryogenic freeze of all metal parts. Using high-end refrigerants — liquid N2 or He
– Furutech achieves temperatures of between -196 to -250C. The treated parts actually change their molecular structure at these extremes of temperature relieving internal stress. The molecules bond together more tightly and the overall structure becomes more stable. This improves electrical conductivity and so power and signal transfer.

Step two in the Alpha Process exposes these same parts to the patented Ring Demagnetization treatment. Ordinary high power magnets used for this purpose often increase magnetization effects; they leave some areas more magnetized than others.

Specification:
– Conductor : α (Alpha) OCC Copper Conductor (~14 AWG)
– Construction:（pcs／mm): 56/0.18mm (Center) + 29/0.18mm (Outside)
– Insulation: Polyethylene Red=L, Yellow=N, Clear=E
– Inner Sheath: RoHS Compliant Vibration suppression PVC (Black)
– Shield: 0.12mm braided α Alpha conductor
– Sheath Material: RoHS Compliant Flexible PVC (Dark Blue)
– Overall Diameter Approx.: 14.3mm

Rating:
– Max. Conductor Resistance: 8.0 Ω／km (JISC3005 6 20℃)
– Min. Insulation Resistance: 1000 MΩ.km
– Capacitance: 53.06 pF/M
– Inductance: 0.786856 uH/M
– Dielectric Strength:  1000 V／1 min. AC (JISC3005 8)
