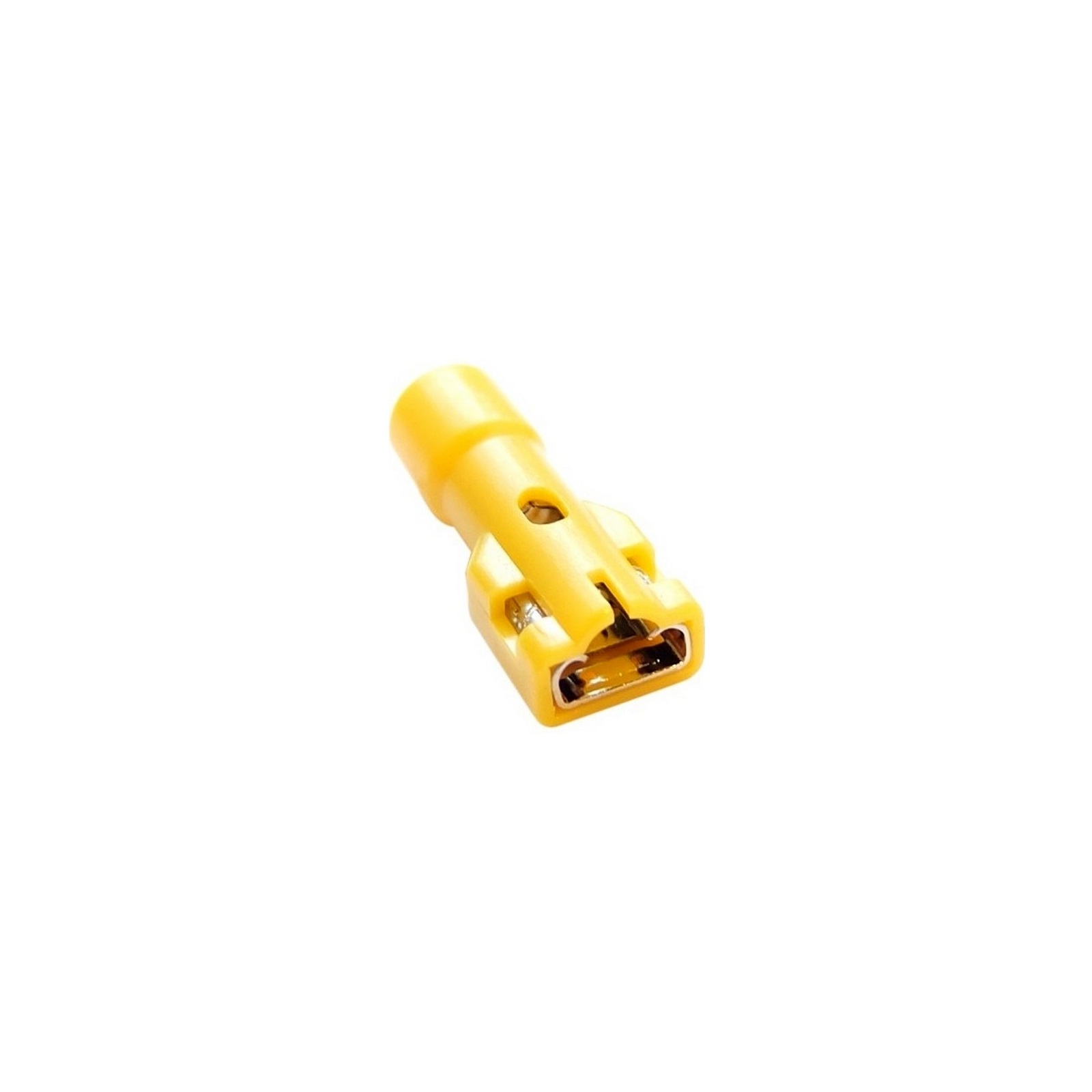

FT-210(G)S10 Insulated Push-on Disconnect Terminal

The world’s first truly high end disconnect terminal made with α(Alpha) Pure Copper conductors.

Features:
– The Furutech FT-210 Fully Insulated Female Disconnect Terminal using 24k Gold-plated α(Alpha) Pure Copper conductor.

Specification:
– Suitable TAB Size: 0.250″ X 0.032″ / 6.35mm X 0.8mm
– Suitable Wire Size: 5.5mm² max. (12-10 awg)
– Insulated Tube: RoHS Compliant high mechanical strength PolySulfone resin (Yellow).
– The extraction force: 5.0 kgf (49N) approx
– Set of 10

Furutech recommends using FT-210 disconnect terminals with FT-860 series wire-wound binding posts and any other application that requires the finest conductor material

Note: If the extraction force weakens to restore the gripping force, simply use nipper pliers to press both sides of terminal
