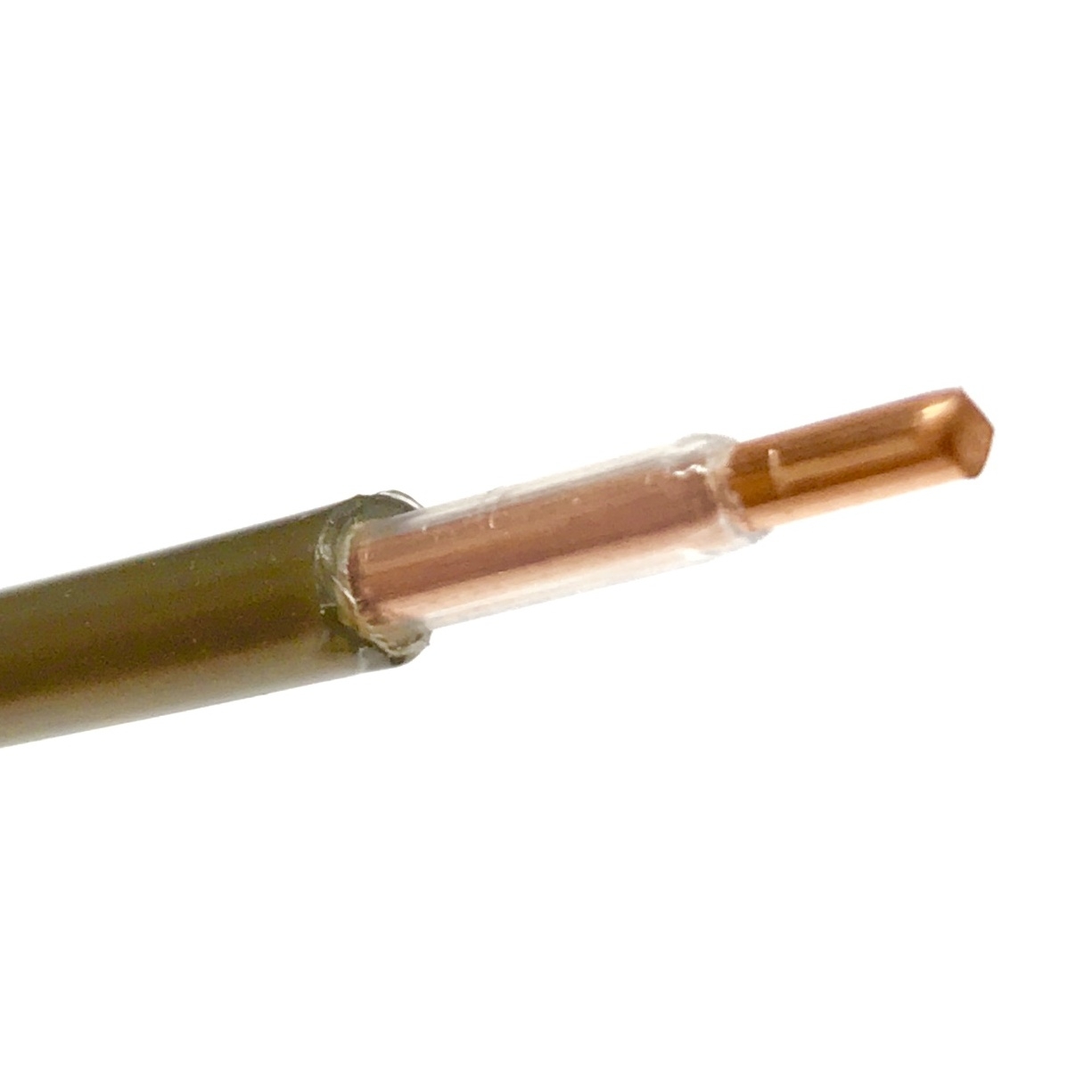

α(Alpha)-22 High End α(Alpha)-OFC Solid Core Power Wire

Furutech engineers have applied Furutech know-how and Furutech advanced technology to develop a true high end audio grade AC Power Wire, the Furutechα(Alpha)-22. Featuring double insulated solid core conductor with optimal electrical properties to provide Pure AC Transmission for
your components.
Features:
– Solid conductor treated with Furutech’s α (Alpha) Cryogenic and Demagnetizing Process
– Double insulation construction: FEP Teflon (Inner layer) and high grade transparent brown polyethylene (Outer layer)

FURUTECH α (Alpha) Process
(Two-Stage Cryogenic and Demagnetization)

Using cutting-edge technology and materials, Furutech developed a low-temperature two-stage process that significantly improves every facet of audio and video performance. The treatment begins during the manufacturing
process with a deep, conditioning cryogenic freeze of all metal parts. Using high-end refrigerants — liquid N2 or He
– Furutech achieves temperatures of between -196 to -250C. The treated parts actually change their molecular structure at these extremes of temperature relieving internal stress. The molecules bond together more tightly and the overall structure becomes more stable. This improves electrical conductivity and so power and signal transfer.

Step two in the Alpha Process exposes these same parts to the patented Ring Demagnetization treatment. Ordinary high power magnets used for this purpose often increase magnetization effects; they leave some areas more magnetized than others.

Specification:
– Conductor: α(Alpha)-OFC Solid Core 11 AWG
– Construction（pcs／mm): 1pcs / 2.2 mm
– Insulation: FEP Teflon
– Sheath Material: Audio grade High Density Polyethylene
– Overall Diameter Approx.: 4.6mm

Electrical Rating:
– Max. Conductor Resistance: 5 Ω／KM (JISC3005 6 20℃)
– Min. Insulation Resistance: >2500M Ω‧m at 1000V 20℃
– Dielectric Strength:  3000 V／1 min. AC (JISC3005 8)
